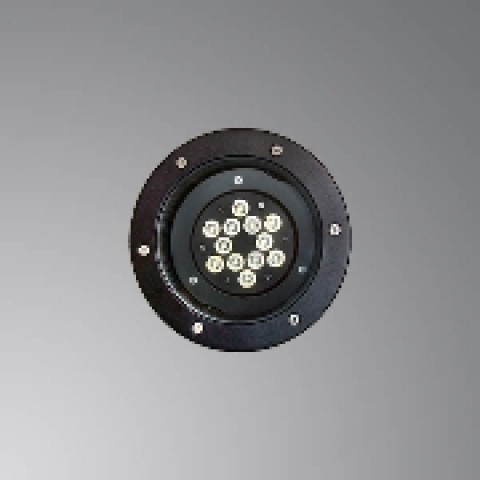

Especifícações | PinLite Led Inground 12 led RGB for an infinity colour generation with every beam projection angle.
Power supply 90/260 V and DMX control included in the die-cast body.
Orientable beam.
Natural white 4000°K and different optics (30°, elliptical 40°X13° and 50°) are available like accessories to the 12° beam standard version.
The full dry system guarantees IP68 protection, that assure the absence of condense inside the product. The excellent material used allows reaching 4000 Kg maximum carriage. The IP68 gel joints complete the accessories that make Pin Lite Led Inground a perfect outdoor up light.
|
| | KEY FEATURES:
• Optical tilt that allow to orient the beam.
• Full color, RGB, or natural white 4000°K versions
• Interchangeable optics
• Electronic strobe, synchronized, random, pulse effect SPECIFICATIONS:
• RGB color mixing
• Tilt adjustable angle +/- 10°
• Standard lens 12°
• Interchangeable optics
• Electronic dimmer
• Controlled by DMX 512 mixer
• Electronic strobe, synchronized, random, pulse effect
• IP 68 Full Dry weatherproof rating
PHYSICAL SIZE:
• Ring outer diameter: 215 mm (6.0 in)
• Height: 325 mm (12.8 in)
• Weight: 3,6 kg (7.9 lbs)
• Weight resistance: 4000 kg (8.8 lbs)
LIGHT SOURCE:
• 12 Luxeon leds, 1.2 W each, 4 Red, 4 Green, 4 Blue CONTROL PROTOCOL AND PROGRAMMING:
• USITT DMX512/1990
• Dmx channels: 3/6
• Setting and addressing: binary dip switch or remotely with Dr1+
• 4 Internal automatic programs
• Master/slave function
ELECTRICAL SPECIFICATIONS/CONNECTIONS:
• AC power: 90-250 V, auto sensing, 50/60 Hz,
• 2m (6.6 ft) power supply free cable included
• 2m (6.6 ft) DMX in and out free cable included
• Power consumption: 0.18 A at 230 V, 0.45 A at 115 V
• DMX data in/out: 3 pin locking XLR M/F
ACCESSORIES:
• 30° lens kit (# 9186)
• 40°x13° elliptical lens kit (# 9186/2)
• 50° lens kit (# 9186/3)
• Sleeve h 325 mm (# 8945030)
• anti-vandalism screw kit (# 8949002)
• IP68 gel joint (# 8917003) |
