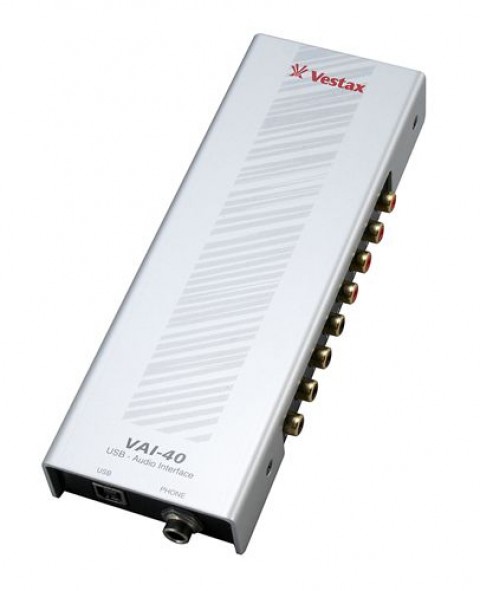

VAI-40

The VAI-40 is an audio interface designed with simplicity for easy operation and enables multi channel recording via USB with high definition sound. This compact metal body audio interface is compatible with professional DAW and DJ application software, applicable to live setups on stage and is suitable for recording & saving vinyl to computers whilst monitoring.

Características

USB spec version 1.1
USB audio class spec version 1.0

1. Sample Rates 44.1kHz, 48kHz
2. Analog Input
1) connector type: 4 channel analog inputs
* 4 RCA connectors (line in 1 and 2)
2) -10dBV input level, unbalanced
3) impedance: 10K Ohm
3. Analog Output
1) connector type: 4 channel analog line outputs
* 4 RCA connectors (line out 1 and 2)
2) -10dBV output level, unbalanced
3) impedance: 100 Ohm
4. Headphone Amplifier
1) THD+N/S: -70dB, 0.03% (typical)
2) output power: 60mW max
3) signal to noise ratio: 110dB (typical)

1. Sample Rates 44.1kHz, 48kHz
2. A/D Converter
1) resolution: 18-bit
2) dynamic range: 85dBA
3) frequency response: 20`20KHz (fs=48kHz)
3. D/A Converter
1) resolution: 20-bit
2) dynamic range: 87dBA
3) frequency response: 20`20KHz (fs=48kHz)

1. ASIO 2.0 support (Windows) 4 input channels / 4 output channels
2. CoreAudio support (Mac OS X) 4 input channels / 4 output channels
3. MME/WDM support (Windows) 2 input channels / 2 output channels

Power : USB bus power 250mA max
Dimensions : 72(W)×206(D)×30(H)mm
Weight : 0.7 kg
